From site survey to the final motor test.
We offer six lines of work; each can be contracted on its own or all together. Our process automation quotations cover the entire electrical infrastructure, including earthing, site lighting, and CCTV and fire detection cabling. The client deals with a single point of contact.
Process automation
The control system we install measures the values in the field, makes decisions, protects the plant and records everything it does:
- Measures: Monitors level, flow, pressure, temperature and energy values continuously and simultaneously.
- Decides: Runs pumps and units according to the current load, using PID loops and sequencing logic.
- Protects: Stops the relevant equipment in the event of overload, overflow or dry running, and alerts the operator before damage occurs.
- Balances: Brings pumps into service in rotation according to running hours (even wear); reduces energy consumption and mechanical wear by means of drives.
- Records: Stores every intervention and event with a time stamp; generates trends, reports and alarms.
- Recovers: Brings the process to a safe stop when power is lost; when power returns, it resumes where it left off without waiting for the operator.
SCOPE
- Site analysis and feasibility report
- P&ID and instrument list
- Control philosophy and I/O list
- PLC topology, communication design

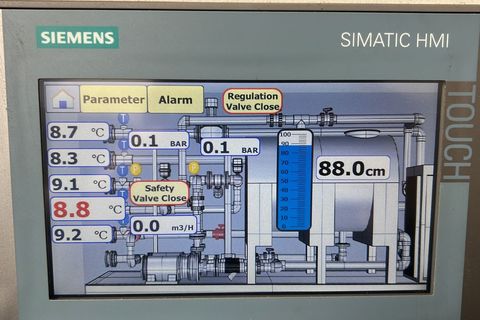

- SCADA architecture, operator panel design
- FAT / SAT tests, operator training
APPLICATION AREAS

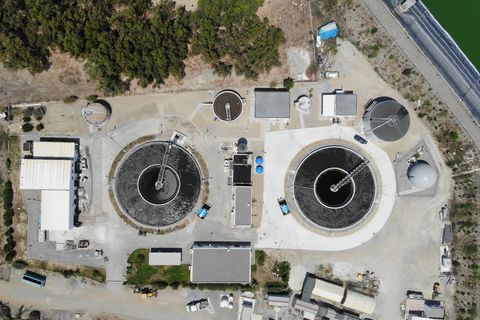

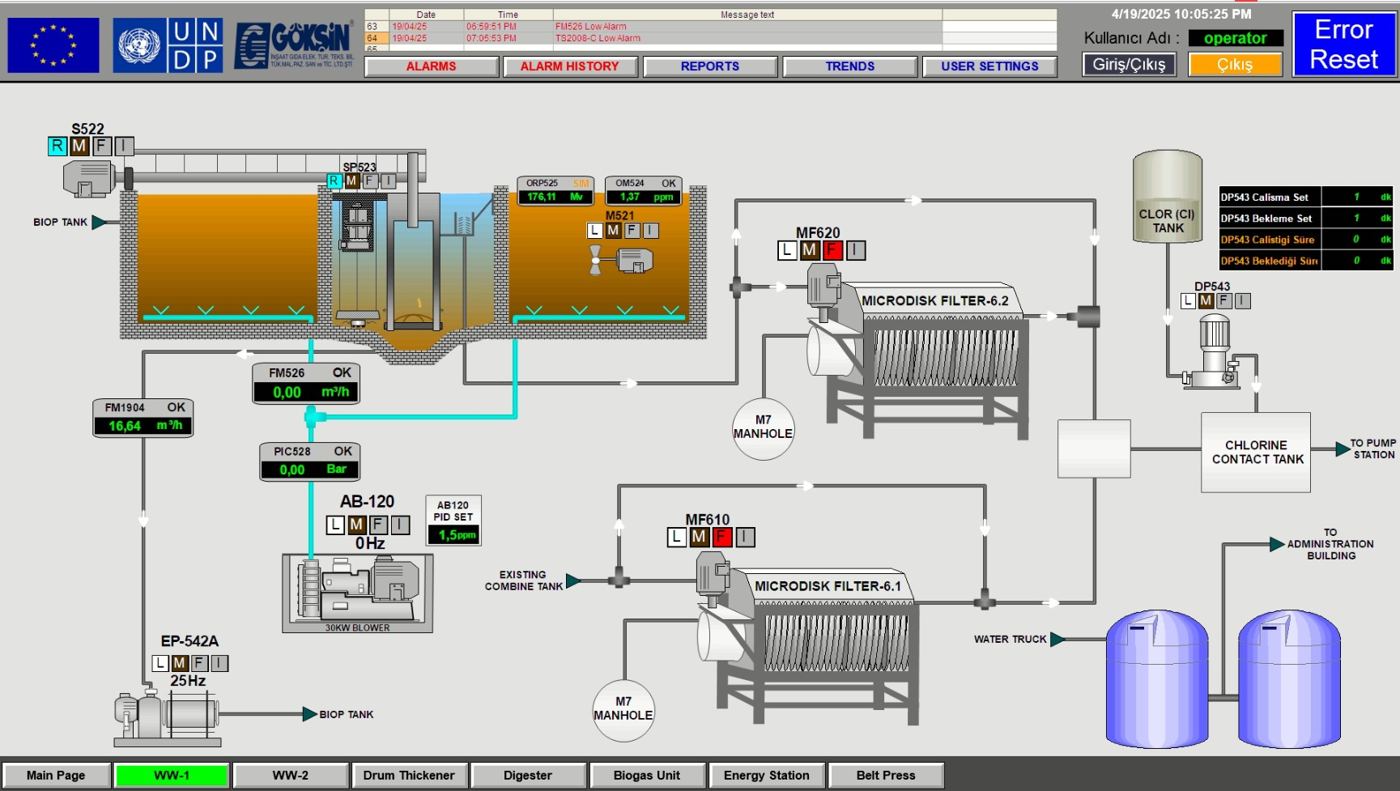

- Water and wastewater treatment, pumping stations

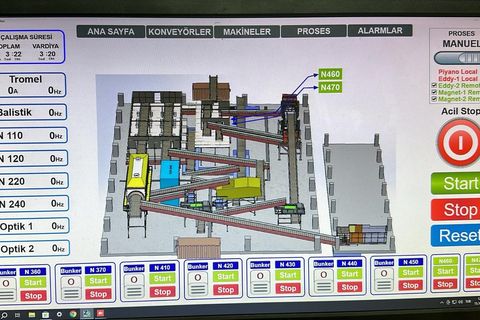

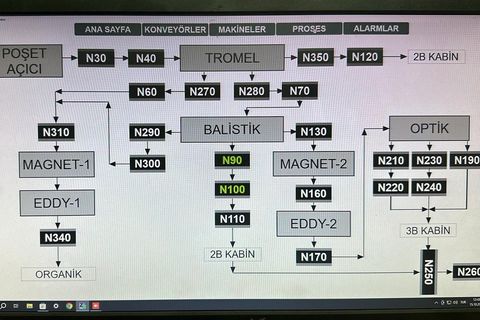

- Solid waste mechanical sorting
- Biogas and energy plants
- Food, cosmetics and chemical processes
- Production and assembly lines
PLC, HMI and SCADA software
Brand-independent, documented software; a field-tested standard screen library. On Siemens, Beckhoff, Schneider, ABB and GMT platforms; on WinCC, InTouch, zenon and PİK SCADA.
SOFTWARE APPLICATIONS
- Machine control software: press, conveyor, filling, mixer, servo/motion
- Process production software: treatment, biogas, fertiliser, cosmetics; recipe, batch, interlock
- Power and energy monitoring: MDB/MCC energy, power factor correction, generator/ATS monitoring
- IT/OT applications: ERP/MES via OPC UA, reporting, database, remote access
- Modernisation and upgrades: migration from legacy PLC/HMI platforms, hardware replacement while preserving the program
COMMUNICATION SYSTEMS
- Profinet, Profibus DP/PA
- Modbus TCP / RTU
- OPC UA / OPC DA
- EtherCAT, EtherNet/IP
- IO-Link, HART, M-Bus
- GSM/GPRS and radio telemetry
- Fibre optic and industrial Ethernet infrastructure
DELIVERABLES
- Commented source code and backup
- Tag and alarm list
- Screen manual, operator training

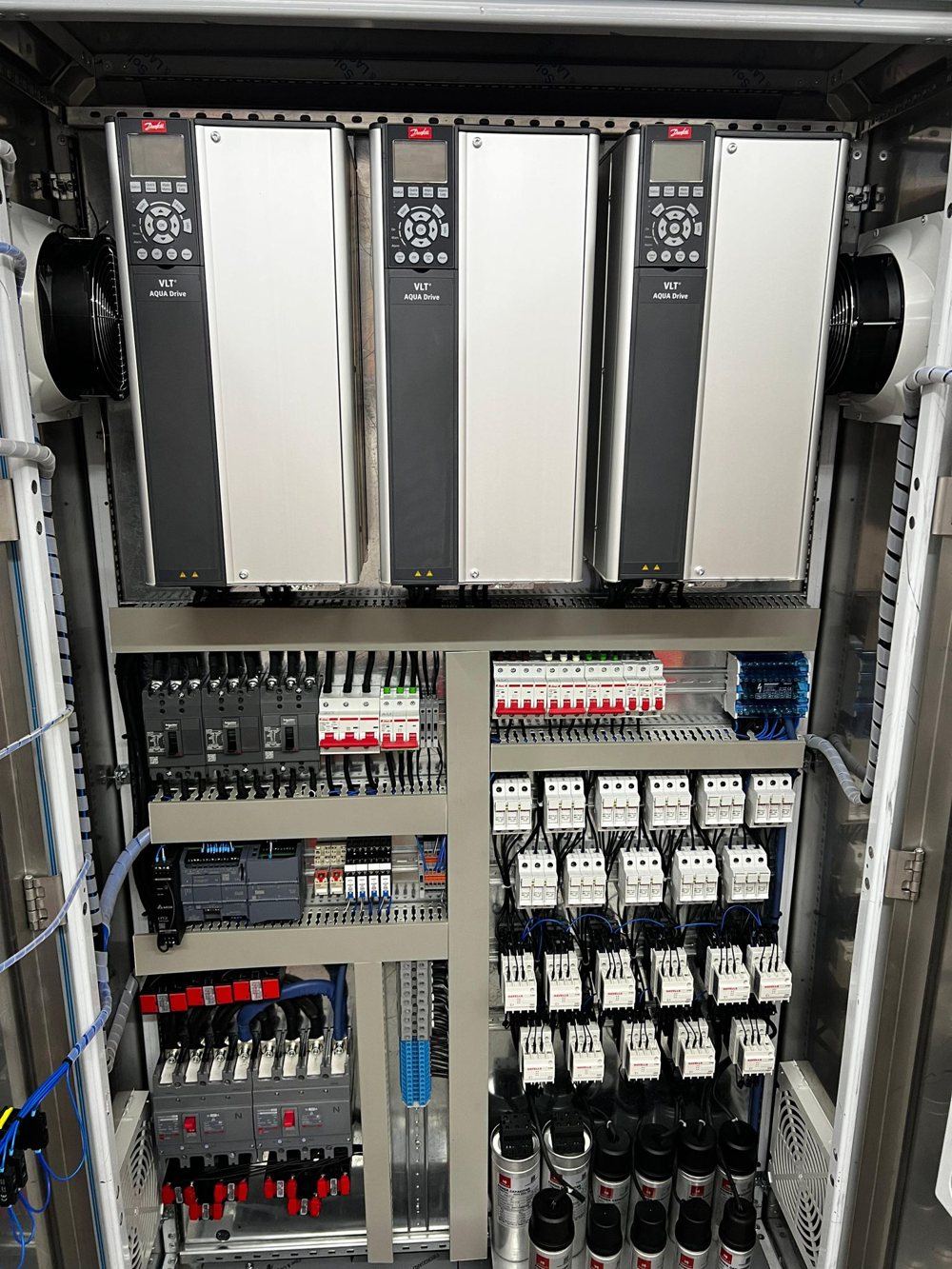

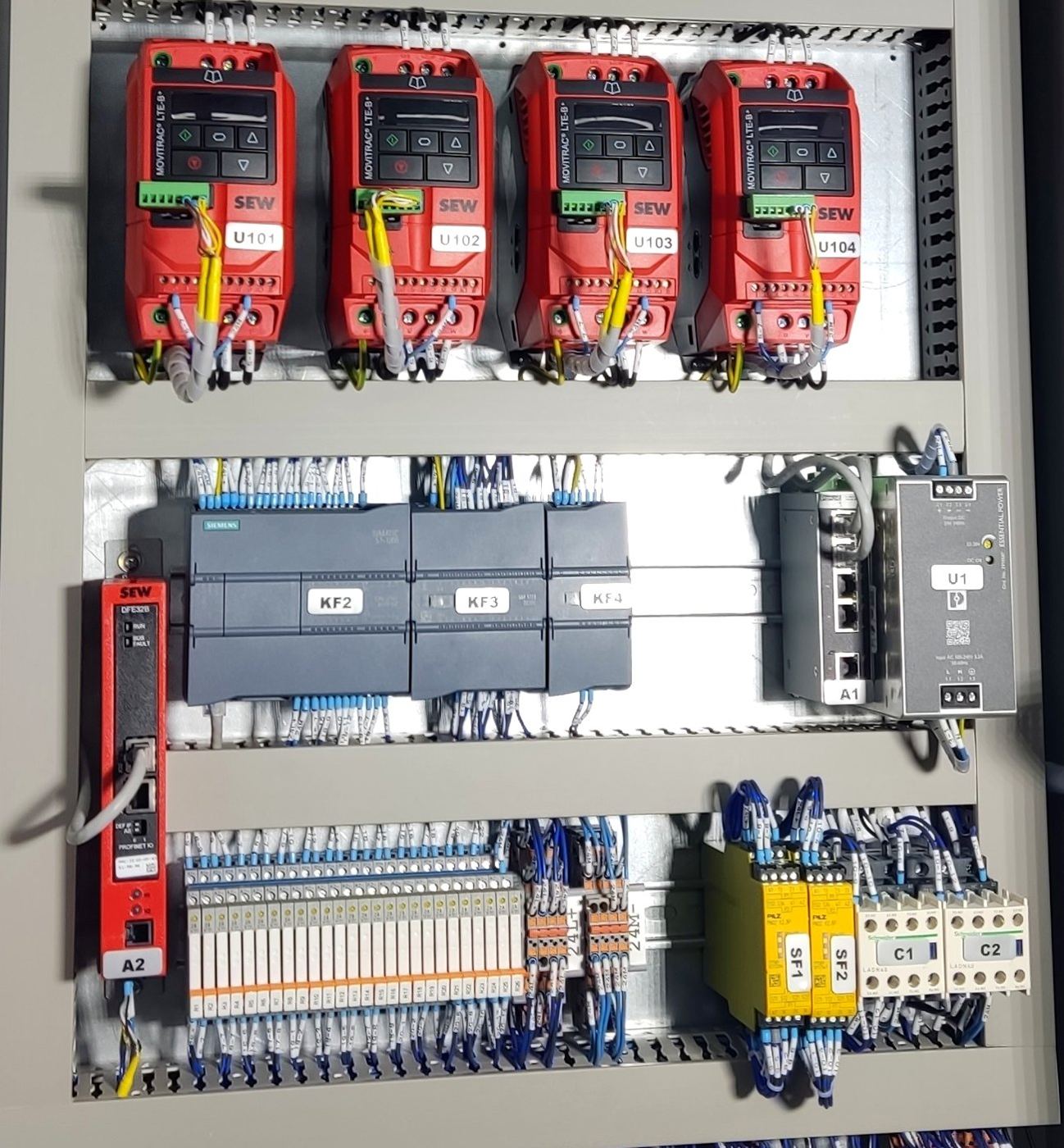

Panel building and AC drive applications
Design, manufacture, routine testing and documentation in all IEC 61439 forms from 2A to 4B, at our Kartal workshop. We work with Siemens, Schneider and ABB switchgear; Phoenix Contact and Klemsan terminal blocks; Prysmian and Nexans cables; and Danfoss, SINAMICS, ABB, WEG and SEW drives.
PANEL TYPES WE BUILD
IEC 61439 FORMS
AC DRIVE APPLICATIONS
Electrical and automation design
Calculation and design of the entire electrical infrastructure the process requires; the scope is settled at the quotation stage, so there are no surprises on site.
CALCULATION AND DESIGN
- Power demand and capacity calculation, load list
- Single-line diagram
- Short-circuit and cable sizing calculations
- Panel layout and manufacturing drawings
- As-built documentation
INFRASTRUCTURE SYSTEMS
- Earthing and lightning protection design
- Site and perimeter lighting
- Extra-low voltage: CCTV, fire detection, data
- UPS, generator and ATS
- MDB, MCC and sub-distribution boards
Site electrical installation and commissioning
Installation and commissioning carried out by us in person on site, from cable trays to the final motor test. Every step, from calculation to testing, is followed up on the spot.
ELECTRICAL INSTALLATION
- Cable trays, trunking and LV installation
- Earthing and lightning protection installation
- Site lighting
- CCTV and fire detection cabling and termination
- Instrument installation and calibration
COMMISSIONING
- I/O and signal verification
- Motor rotation and protection tests, drive parameterisation
- SCADA – PLC communication verification
- SAT, performance measurement under load
- Handover with measurement reports, operator training
After-sales support and technical service
After handover, we remain as close as a member of your own plant staff. Both at plants we built and at those built by others.
SUPPORT
- Fault response, remote connection support
- PLC, drive and SCADA backups
- Periodic maintenance and measurement
- Spare parts supply
RETROFIT
- Analysis of the existing plant and improvement proposals
- Capacity increases, line additions
- Migration from legacy PLC/drive platforms
- Panel retrofit and rewiring
Let us draw up the scope list together, tailored to your project.
A single-line diagram, bill of quantities or specification can be attached.
